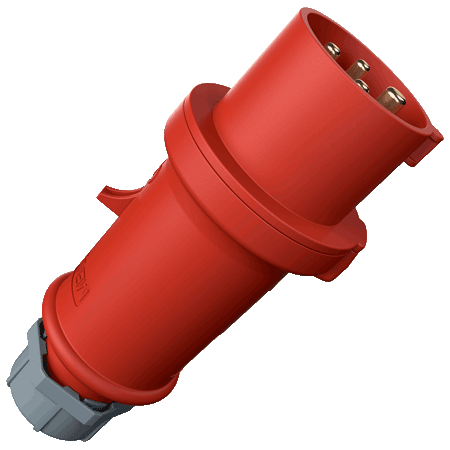

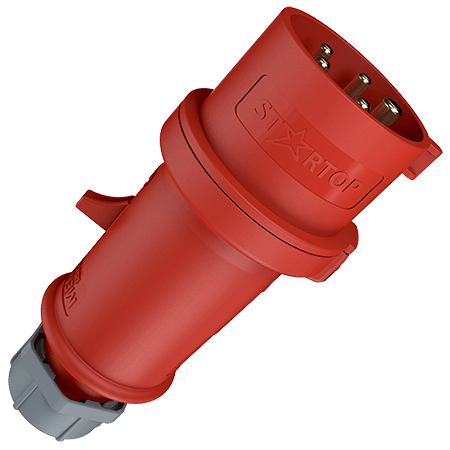

Phase inverter plug ProTOP 3319A

Poles
Voltage
Clock position
  • screw terminals
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.3319A
  • EAN4015394201182
  • Std. Pack. 10 Qty.

Technical specifications

Phase inverter plug ProTOP 3319A

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 181 g
Declaration of Conformity DE,VDE

Appropriate accessories

Phase inverter plug ProTOP 3319A

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage
