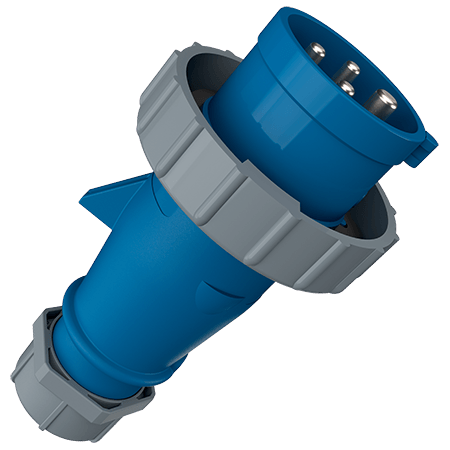

Plug AM-TOP® 21517

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.21517
  • EAN4015394040835
  • Std. Pack. 10 Qty.

Technical specifications

Plug AM-TOP® 21517

Ampere 16 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 67
Weight 170 g
Declaration of Conformity DE,VDE

Appropriate accessories

Plug AM-TOP® 21517

Protective cover

Part no. 40778

for watertight plugs, wall mounted and panel mounted inlets

more

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage

more
