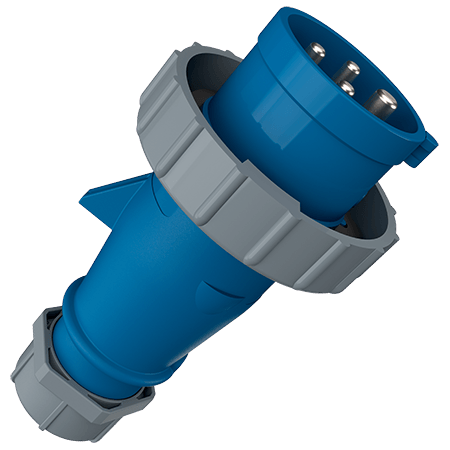

Plug AM-TOP® 21519

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.21519
  • EAN4015394040859
  • Std. Pack. 10 Qty.

Technical specifications

Plug AM-TOP® 21519

Ampere 32 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 67
Weight 257 g
Declaration of Conformity DE,VDE
