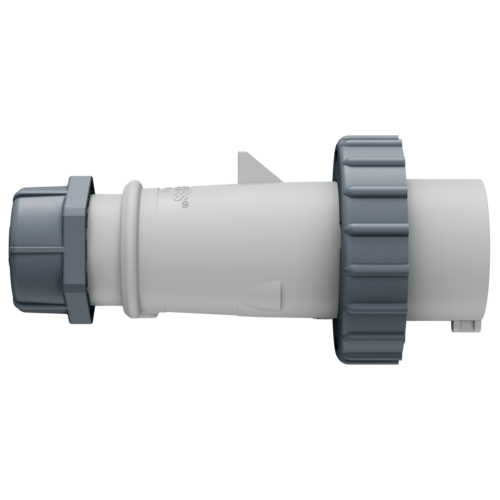

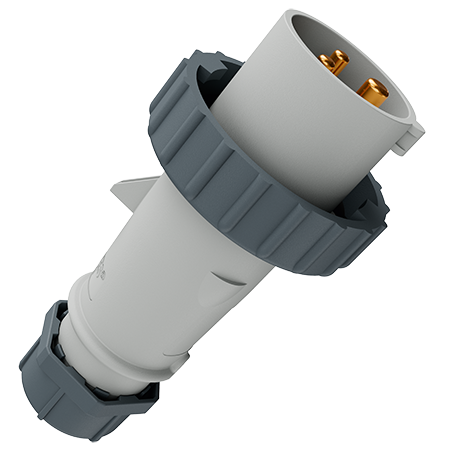

MENNEKES Plug AM-TOP® 2422
MENNEKES Plug AM-TOP® 2422 images3d

Plug AM-TOP® 2422

Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.2422
  • EAN4015394014942
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP® 2422

Ampere 16 A
Poles 3 p
Voltage 50-250 V
Clock position 3 h
Hertz (DC)
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 133 g
Certifications EAC
CQC

Directives

Plug AM-TOP® 2422

Appropriate accessories

Plug AM-TOP® 2422

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage

MENNEKES Protective cover 40784

Protective cover

Part no. 40784

for watertight plugs, wall mounted and panel mounted inlets
