MENNEKES Plug PowerTOP TM 24870

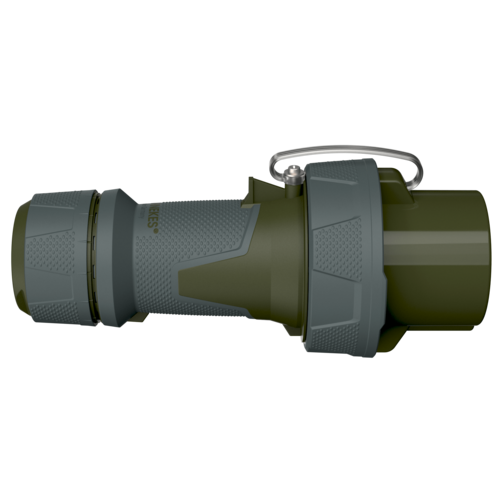

MENNEKES Plug PowerTOP TM 24870 images3d

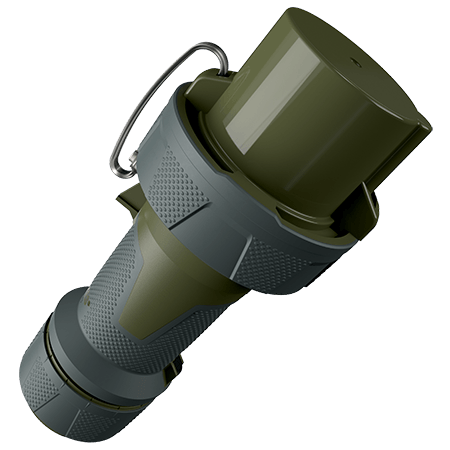

Plug PowerTOP TM 24870

Ampere 63 A 125 A
  • screw terminals
  • frame terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and external cable grip
  • with protective cap
  • (form CP)
  • Part no.24870
  • EAN4015394247890
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP TM 24870

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67
Weight 880 g
Certifications CB Zertifikat
VDE
EAC

Datasheets & Downloads

Plug PowerTOP TM 24870

Product infoPlug PowerTOP TM 24870 PDF, 147 KB
Manufacturer‘s declarationPlug PowerTOP TM 24870 PDF, 37 KB
CAD data STPPlug PowerTOP TM 24870 ZIP, 1 MB
CAD data 3D DWGPlug PowerTOP TM 24870 ZIP, 3 MB
Mounting instructionsPlug PowerTOP TM 24870 PDF, 1 MB
Dimensional drawing portraitPlug PowerTOP TM 24870 PNG, 44 KB
Dimensional drawing landscape formatPlug PowerTOP TM 24870 PNG, 44 KB

Directives

Plug PowerTOP TM 24870

REACh
RoHS

Appropriate products

Plug PowerTOP TM 24870 with IP67

MENNEKES Connector PowerTOP Xtra TM 24885

Connector PowerTOP Xtra TM

Part no. 24885

  • Protection type: IP67
  • Ampere: 63 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Plug PowerTOP TM 24870

MENNEKES Protective cover TM 24895

Protective cover TM

Part no. 24895

for watertight plugs and inlets, (form G)

more
