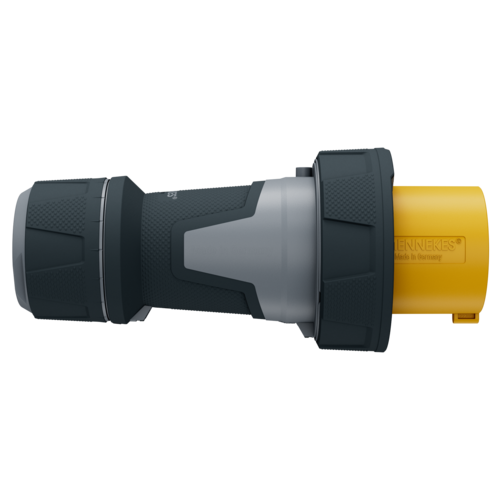

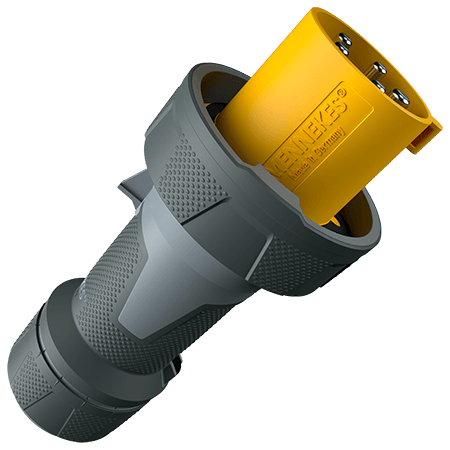

MENNEKES Plug PowerTOP Xtra 13223
MENNEKES Plug PowerTOP Xtra 13223 images3d

Plug PowerTOP Xtra 13223

Poles
Voltage
Clock position
  • screw terminals
  • rubberised grip area
  • frame terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock
  • two safety slides
  • Part no.13223
  • EAN4015394240907
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP Xtra 13223

Ampere 125 A
Poles 5 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 1520 g
Certifications VDE
EAC

Directives

Plug PowerTOP Xtra 13223

Appropriate accessories

Plug PowerTOP Xtra 13223

MENNEKES Protective cover 40788

Protective cover

Part no. 40788

for watertight plugs, wall mounted and panel mounted inlets 125 A, 3 p - 5 p
