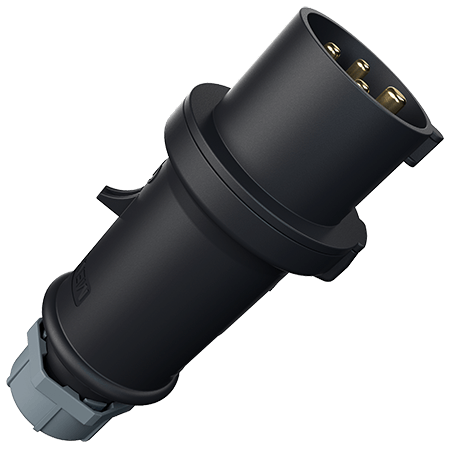

Plug ProTOP 165

MENNEKES CEE plug ProTOP® for 16 and 32 A with proven screw contacts.

Poles
Voltage
Clock position
  • screw terminals
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.165
  • EAN4015394188889
  • Std. Pack. 10 Qty.

Technical specifications

Plug ProTOP 165

Ampere 32 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 270 g
Declaration of Conformity DE,VDE
CN,CQC

Appropriate accessories

Plug ProTOP 165

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage
