MENNEKES

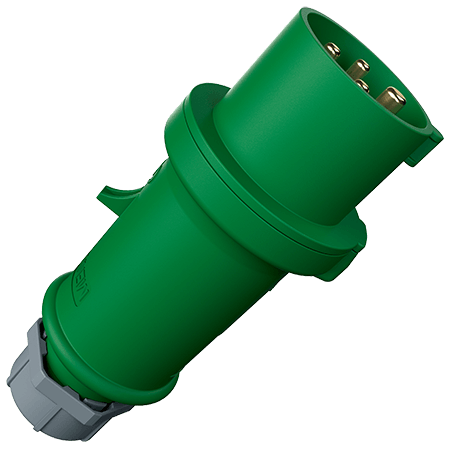

Plug ProTOP 773

MENNEKES CEE plug ProTOP® for 16 and 32 A with proven screw contacts.

Poles
Voltage
Clock position
  • screw terminals
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.773
  • EAN4015394253518
  • Std. Pack. 10 Qty.

Technical specifications

Plug ProTOP 773

Ampere 32 A
Poles 4 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 262 g

Appropriate accessories

Plug ProTOP 773

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage

more
