MENNEKES

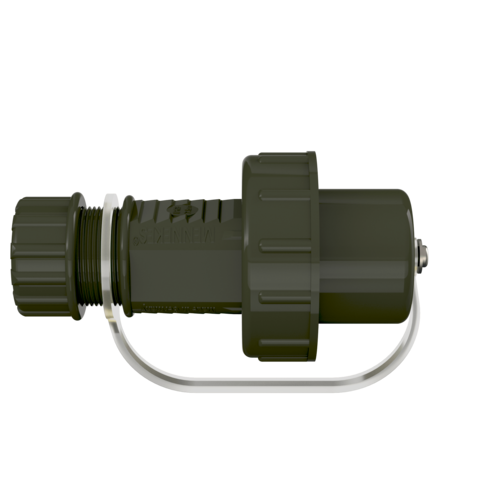

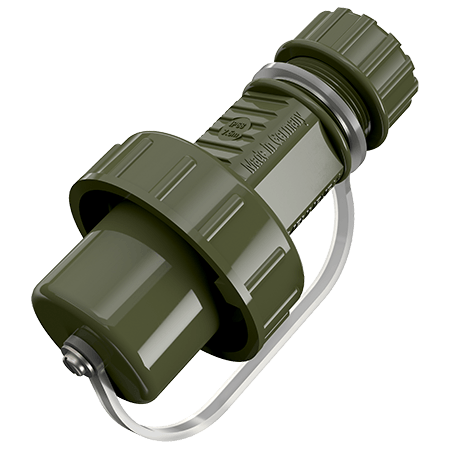

Plug SCHUKO® TM 10829

Ampere 16 A
Poles
Voltage
  • screw terminals
  • with double PE-conductor acc. to german and french-belgian standard
  • with bayonet ring
  • protective cap attached by a strap
  • for cables up to 3 x 2.5 mm² up to H07RN-F
  • (form CP)
  • Part no.10829
  • EAN4015394035527
  • Std. Pack. 5 Qty.

Technical specifications

Plug SCHUKO® TM 10829

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP 68
Shutter No
Weight 140 g
Declaration of Conformity DE,VDE
