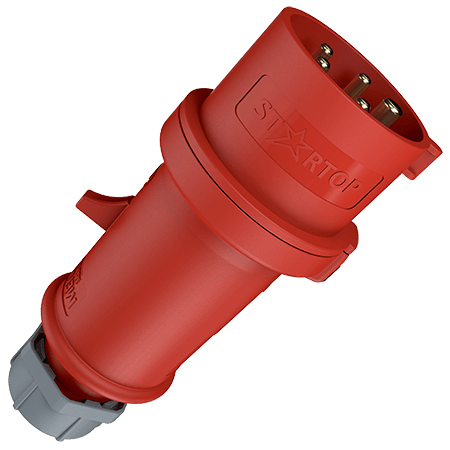

Plug StarTOP® with SafeCONTACT 34

Poles
Voltage
Clock position
  • screwless, with insulating displacing technique
  • cable gland and sealing
  • strain relief and protection against kinking
  • enclosure with thread lock and safety slide
  • Part no.34
  • EAN4015394150183
  • Std. Pack. 10 Qty.

Technical specifications

Plug StarTOP® with SafeCONTACT 34

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - SafeCONTACT
Contact standard
Protection type IP 44
Weight 338 g
Declaration of Conformity DE,VDE
NL,Kema
CN,CQC

Mounting instruction video

Video mounting instructions

Appropriate accessories

Plug StarTOP® with SafeCONTACT 34

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage
