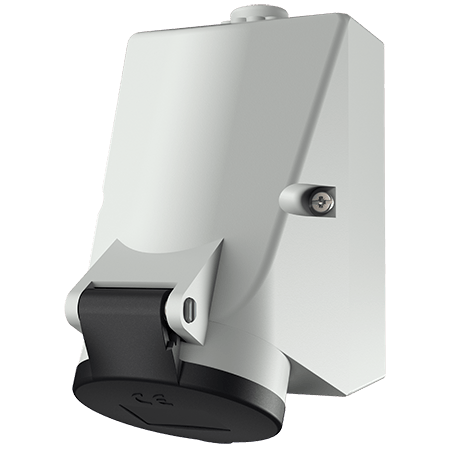

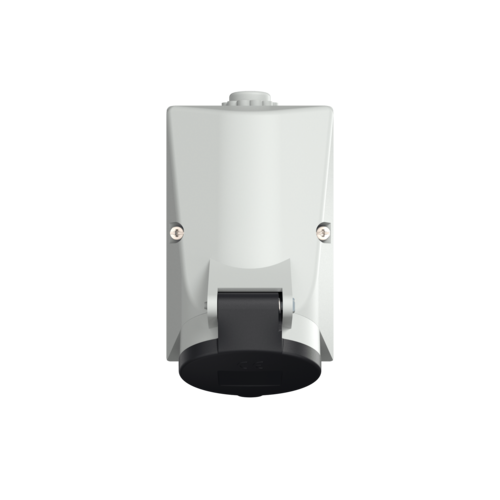

Receptacle 2766A

Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top and two blind entries (can be cut out) at the bottom
  • enclosure base can be turned 180°
  • Part no.2766A
  • EAN4015394113553
  • Std. Pack. 10 Qty.

Technical specifications

Receptacle 2766A

Ampere 16 A
Poles 5 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Enclosure material Plastic
Weight 283 g
Declaration of Conformity CN,CQC

Appropriate accessories

Receptacle 2766A

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for wall mounting or on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
