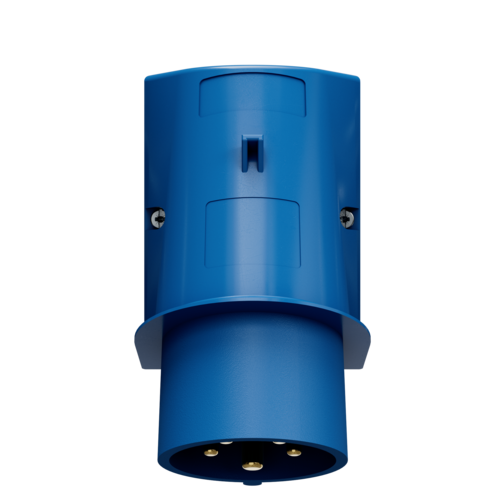

Wall mounted inlet 341

Poles
Voltage
Clock position
  • screw terminals
  • enclosure base with stamped recess for quick cutting out
  • Part no.341
  • EAN4015394002451
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted inlet 341

Ampere 16 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 246 g
Declaration of Conformity DE,VDE
CN,CQC

Datasheets & Downloads

Wall mounted inlet 341

Appropriate accessories

Wall mounted inlet 341

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage
