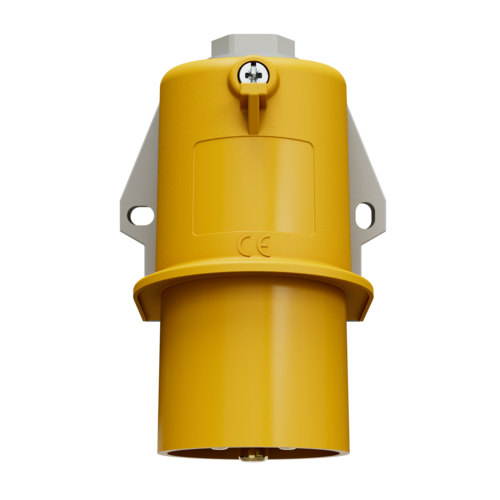

MENNEKES Wall mounted inlet 843
MENNEKES Wall mounted inlet 843 images3d

Wall mounted inlet 843

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • for internal or external fixing
  • for hinged lids for retrofit see accessories
  • Part no.843
  • EAN4015394133575
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted inlet 843

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Weight 116 g
Certifications EAC

Directives

Wall mounted inlet 843

Appropriate accessories

Wall mounted inlet 843

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage

MENNEKES Hinged lid 41482

Hinged lid

Part no. 41482

suitable for wall mounted inlets part no. 843, 844, 846, 847
