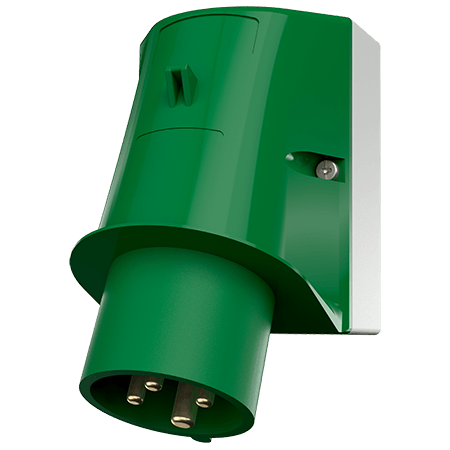

Wall mounted inlet 922

Poles
Voltage
Clock position
  • screw terminals
  • enclosure base with stamped recess for quick cutting out
  • Part no.922
  • EAN4015394006527
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted inlet 922

Ampere 16 A
Poles 4 p
Voltage 50-500 V
Clock position 2 h
Hertz 300-500 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 237 g
Declaration of Conformity VDE
EAC (Zwangszulassung)
CQC

Appropriate accessories

Wall mounted inlet 922

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
