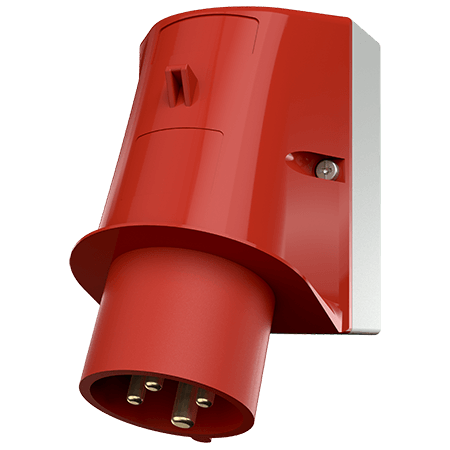

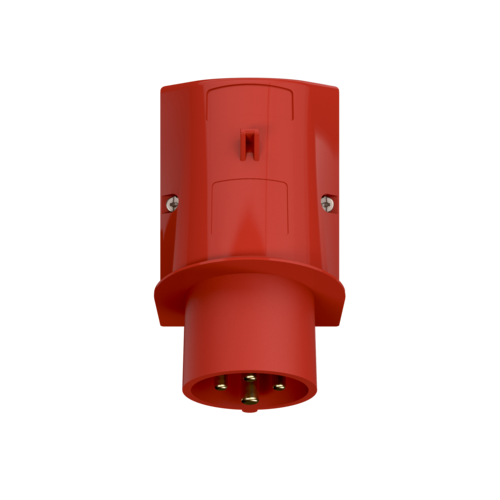

Wall mounted phase inverter inlet 3346

Poles
Voltage
Clock position
  • screw terminals
  • Part no.3346
  • EAN4015394195788
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted phase inverter inlet 3346

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 399 g
Declaration of Conformity DE,VDE
CN,CQC

Datasheets & Downloads

Wall mounted phase inverter inlet 3346

Appropriate accessories

Wall mounted phase inverter inlet 3346

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p, up to 125 A, 5 p, not suitable for low voltage
