MENNEKES

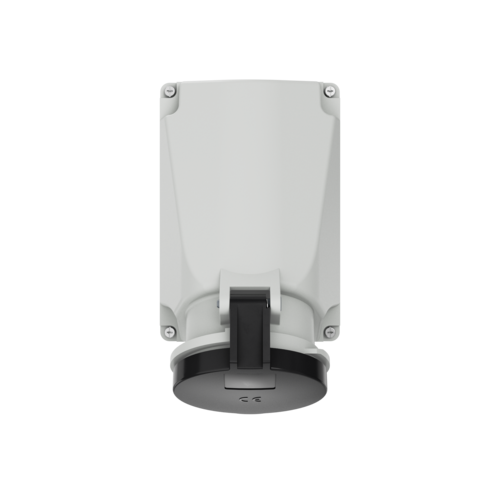

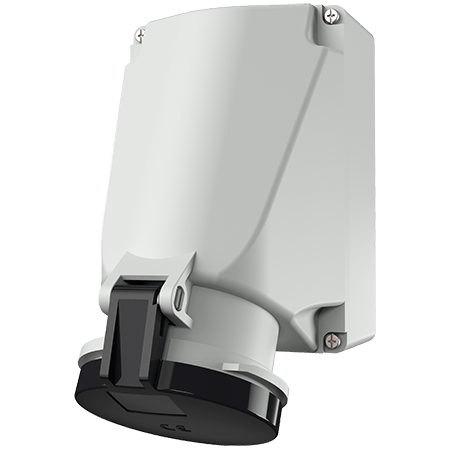

Wall mounted receptacle 1142A

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • suitable for through wiring
  • internal fixing
  • enclosure base can be turned 180°
  • with 6 fixing points to accommodate special terminals
  • products with pilot contacts on request
  • Part no.1142A
  • EAN4015394007654
  • Std. Pack. 5 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 1142A

Ampere 63 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 44
Weight 896 g
Declaration of Conformity VDE
EAC
CQC
