MENNEKES

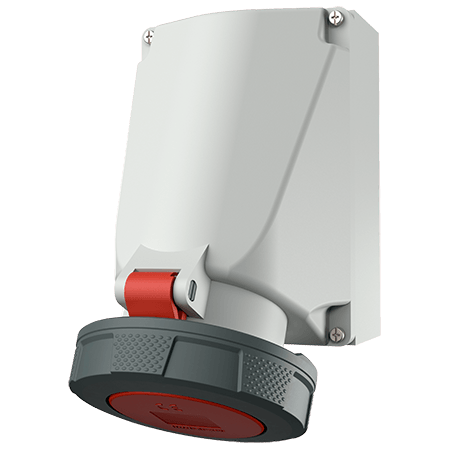

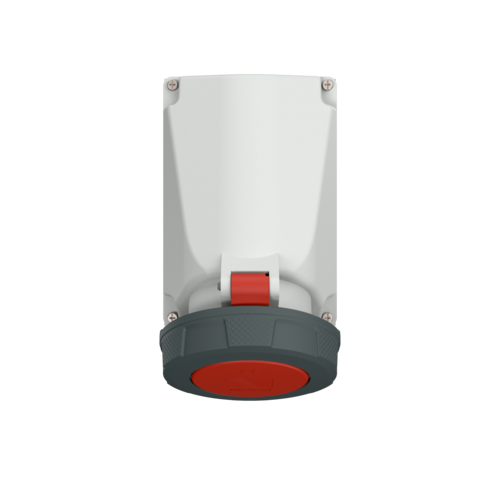

MENNEKES Wall mounted receptacle 132A
MENNEKES Wall mounted receptacle 132A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 132A

Ampere 63 A
Poles
Voltage
Clock position
  • enclosure base can be turned 180°
  • with 6 fixing points to accommodate special terminals
  • products with pilot contact on request
  • Part no.132A
  • EAN4015394000570
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 132A

Ampere 63 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Weight 941 g
Declaration of Conformity VDE
EAC
CQC
