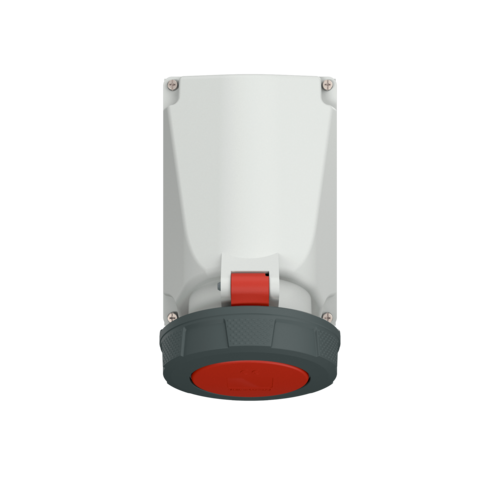

Wall mounted receptacle 136A

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT®
  • internal fixing
  • enclosure base can be turned 180°
  • with 6 fixing points to accommodate special terminals
  • products with pilot contact on request
  • Part no.136A
  • EAN4015394000631
  • Std. Pack. 5 Qty.

Technical specifications

Wall mounted receptacle 136A

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 67
Weight 1006 g
Declaration of Conformity DE,VDE
CN,CQC

Appropriate products

Wall mounted receptacle 136A with IP 67

Panel mounted receptacle

Part no. 209A

  • Protection type: IP 67
  • Ampere: 63 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Wall mounted receptacle

Part no. 5113A

  • Protection type: IP 67
  • Ampere: 63 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
