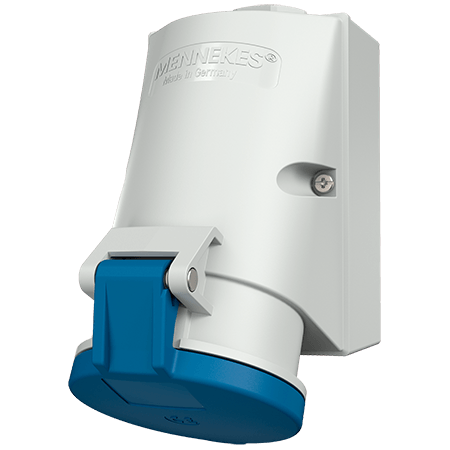

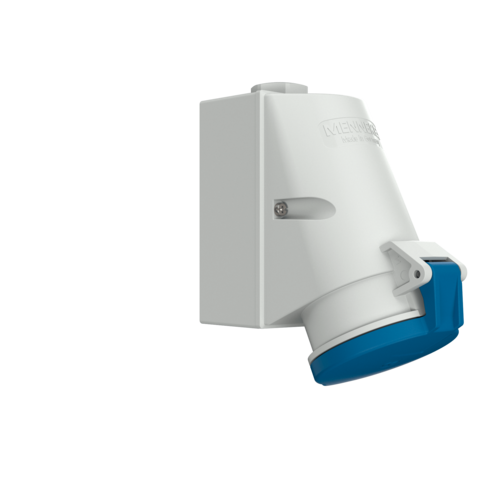

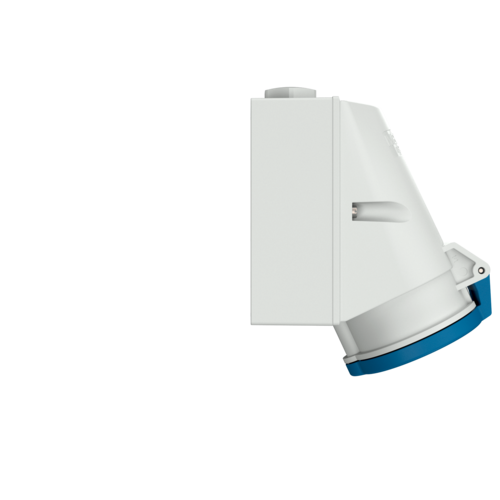

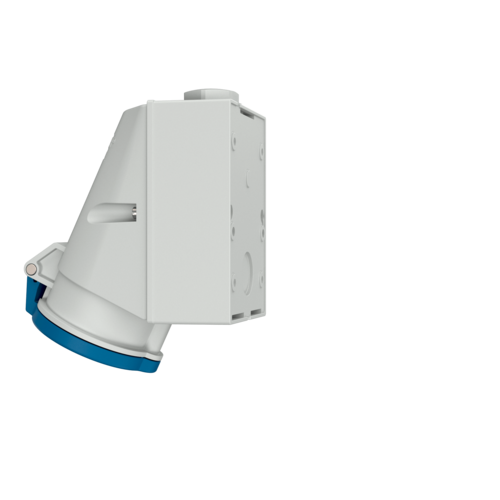

Wall mounted receptacle 1421

Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top, two blind cable entries (can be cut out) at bottom
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.1421
  • EAN4015394010555
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted receptacle 1421

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 346 g
Declaration of Conformity DE,VDE
AT,ÖVE
CN,CQC

Appropriate accessories

Wall mounted receptacle 1421

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
