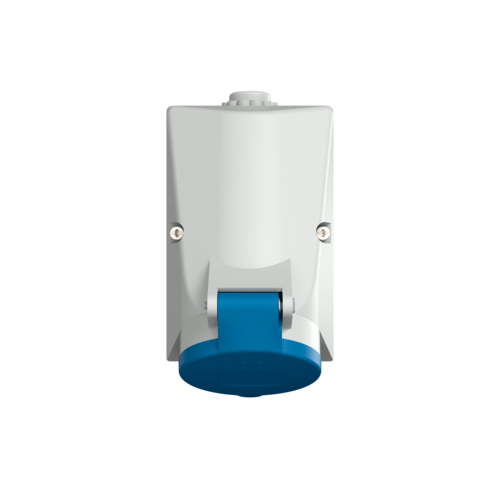

Wall mounted receptacle 3045

Poles
Voltage
Clock position
  • screw terminals
  • internal fixing
  • one cable entry at top, two blind cable entries (can be cut out) at bottom
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.3045
  • EAN4015394017547
  • Std. Pack. 10 Qty.

Technical specifications

Wall mounted receptacle 3045

Ampere 16 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Weight 291 g
Declaration of Conformity CN,CQC

Appropriate accessories

Wall mounted receptacle 3045

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm
