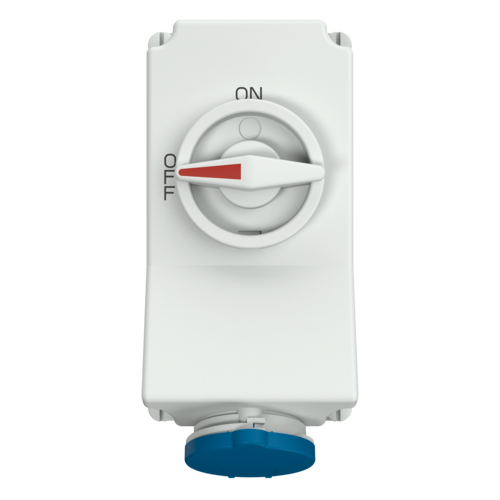

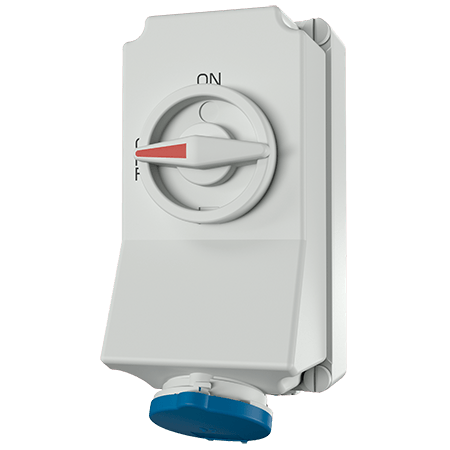

Wall mounted receptacle 5102A

Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.5102A
  • EAN4015394024514
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 5102A

Ampere 16 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Enclosure material Plastic
Weight 1026 g
Declaration of Conformity CN,CQC
