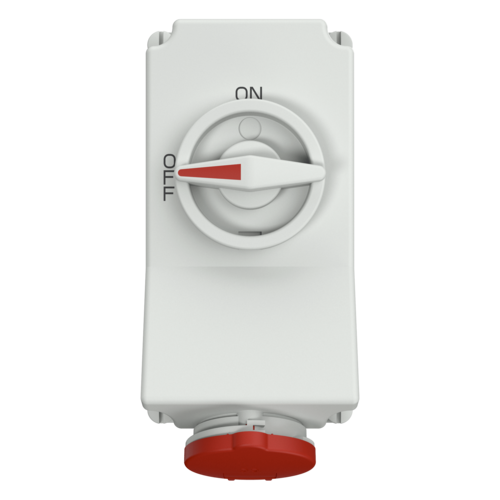

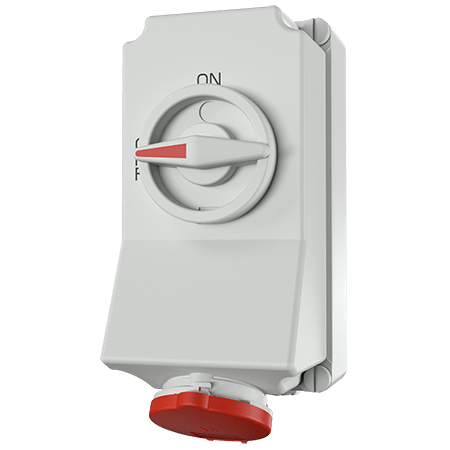

MENNEKES Wall mounted receptacle 5103A
MENNEKES Wall mounted receptacle 5103A images3d

Wall mounted receptacle 5103A

Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.5103A
  • EAN4015394024538
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 5103A

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 1016 g
Declaration of Conformity VDE
EAC
CQC

Appropriate products

Wall mounted receptacle 5103A with IP44

MENNEKES Panel mounted receptacle 1473

Panel mounted receptacle

Part no. 1473

  • Schutzart: IP44
  • Ampere: 16 A
  • Pole: 5 p
  • Volt: 400 V
  • Anschlusstechnik: Screw terminals

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
