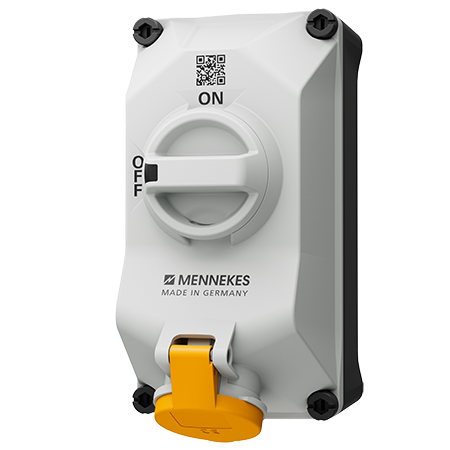

MENNEKES Wall mounted receptacle 5601304G

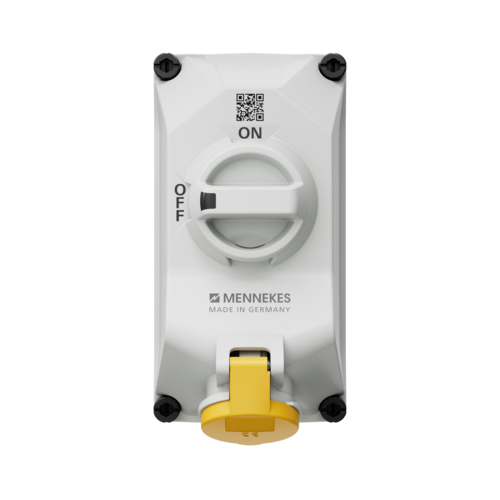

MENNEKES Wall mounted receptacle 5601304G images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 5601304G

Poles
Voltage
Clock position
  • screw terminals
  • pre-wired for installation
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • 3 pole switch
  • receptacles can be padlocked
  • Part no.5601304G
  • EAN4015394298014
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 5601304G

Ampere 16 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 1290 g
Certifications CQC

Videos

Wall mounted receptacle 5601304G

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Wall mounted receptacle 5601304G

Appropriate accessories

Wall mounted receptacle 5601304G

MENNEKES Cable gland 990612

Cable gland

Part no. 990612

M 32 - clamping/sealing range 13-21 mm, IP67, deep black RAL 9005, individual packed

MENNEKES Cable gland 990613

Cable gland

Part no. 990613

M 25 - clamping/sealing range 9-17 mm, IP67, deep blackRAL 9005, with seal, individual packed
