MENNEKES

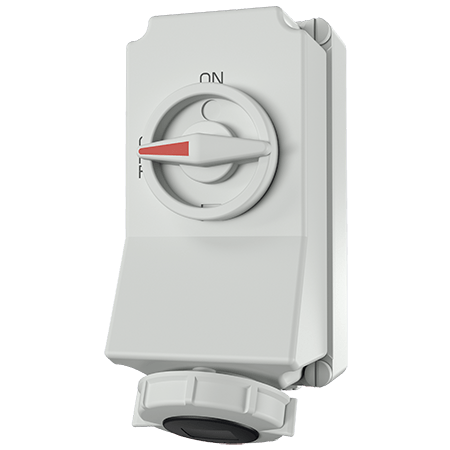

Wall mounted receptacle 5601A

Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.5601A
  • EAN4015394027812
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 5601A

Ampere 16 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Enclosure material Plastic
Weight 1032 g
Declaration of Conformity DE,VDE
CN,CQC
