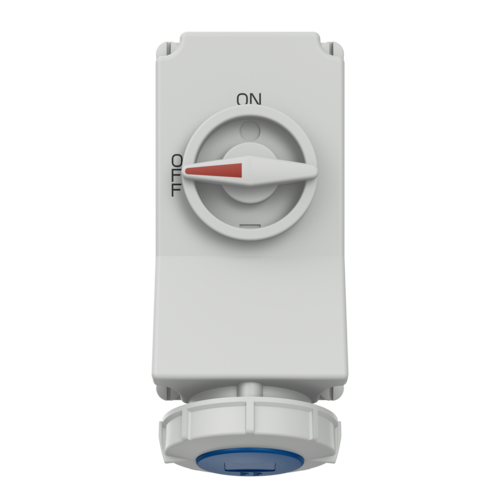

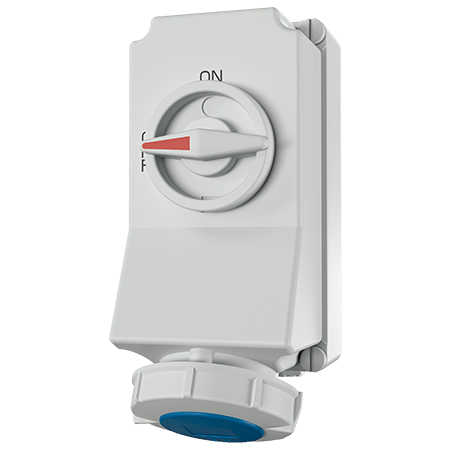

Wall mounted receptacle 5607A

Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.5607A
  • EAN4015394028062
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 5607A

Ampere 32 A
Poles 5 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Enclosure material Plastic
Weight 1260 g
Declaration of Conformity CN,CQC
