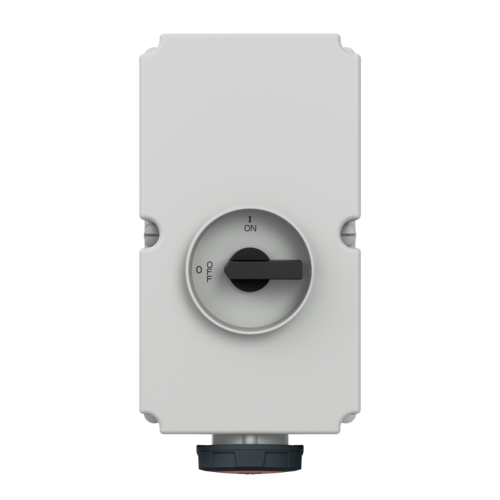

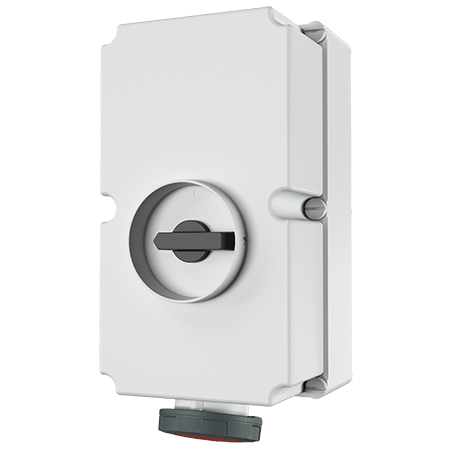

Wall mounted receptacle 5679A

Ampere 125 A
Clock position
  • mechanical DUO-interlock
  • 3 pole fuse socket NH 00
  • upon request with provision for an additional padlock
  • Part no.5679A
  • EAN4015394029168
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 5679A

Ampere 125 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 67
Enclosure material Plastic
Weight 7980 g
Declaration of Conformity EAC

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.
