MENNEKES

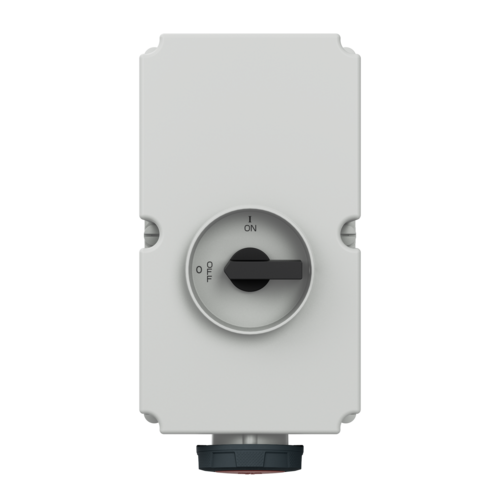

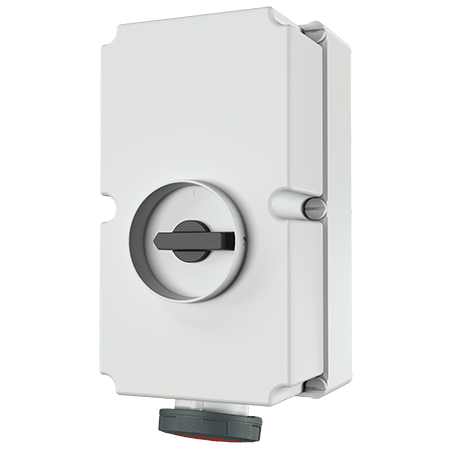

Wall mounted receptacle 5691A

Ampere 125 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT®
  • switched
  • mechanical DUO-interlock
  • upon request with provision for an additional padlock
  • Part no.5691A
  • EAN4015394029250
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 5691A

Ampere 125 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 67
Enclosure material Plastic
Weight 7718 g
Declaration of Conformity CN,CQC

Appropriate products

Wall mounted receptacle 5691A with IP 67

Panel mounted receptacle

Part no. 212A

  • Protection type: IP 67
  • Ampere: 125 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Wall mounted receptacle

Part no. 139

  • Protection type: IP 67
  • Ampere: 125 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
