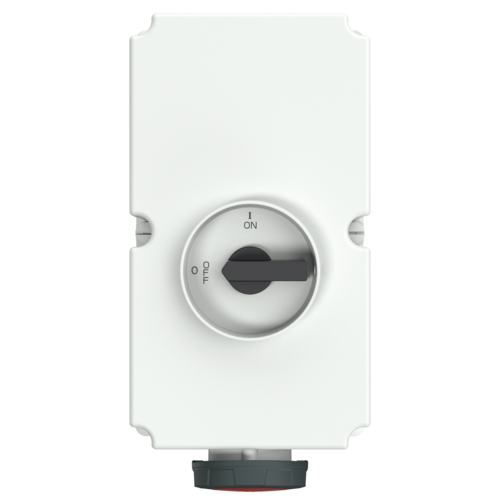

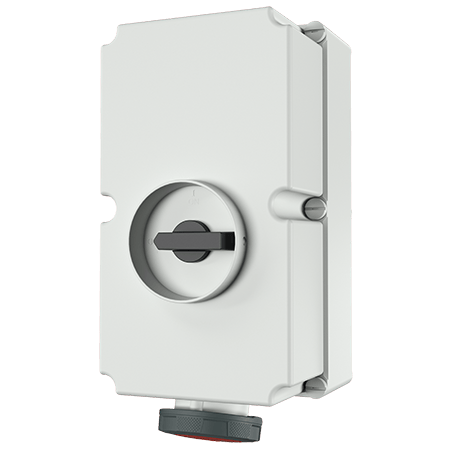

MENNEKES Wall mounted receptacle 5692A
MENNEKES Wall mounted receptacle 5692A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 5692A

Ampere 125 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • upon request with provision for an additional padlock
  • Part no.5692A
  • EAN4015394029328
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 5692A

Ampere 125 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Enclosure material Plastic
Weight 8344 g
Certifications EAC
CQC

Videos

Wall mounted receptacle 5692A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Wall mounted receptacle 5692A

Appropriate products

Wall mounted receptacle 5692A with IP67

MENNEKES Panel mounted receptacle 216A

Panel mounted receptacle

Part no. 216A

  • Protection type: IP67
  • Ampere: 125 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Wall mounted receptacle 143

Wall mounted receptacle

Part no. 143

  • Protection type: IP67
  • Ampere: 125 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
