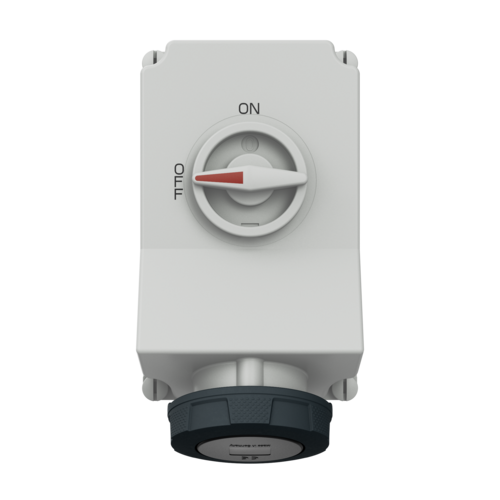

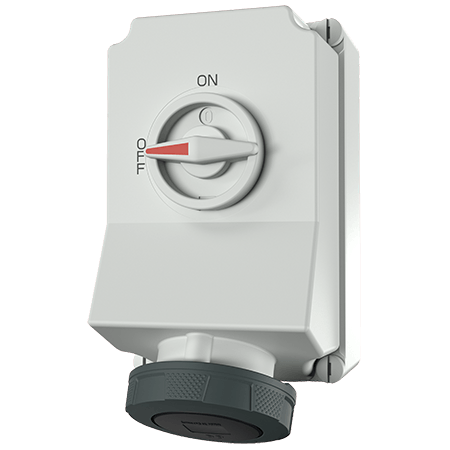

MENNEKES Wall mounted receptacle 5759A
MENNEKES Wall mounted receptacle 5759A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 5759A

Ampere 63 A
Poles
Voltage
Clock position
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.5759A
  • EAN4015394029748
  • Std. Pack. 3
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 5759A

Ampere 63 A
Poles 5 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Enclosure material Plastic
Weight 2518 g
Certifications EAC
CQC

Directives

Wall mounted receptacle 5759A

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
