MENNEKES Wall mounted receptacle 5785
MENNEKES Wall mounted receptacle 5785 images3d

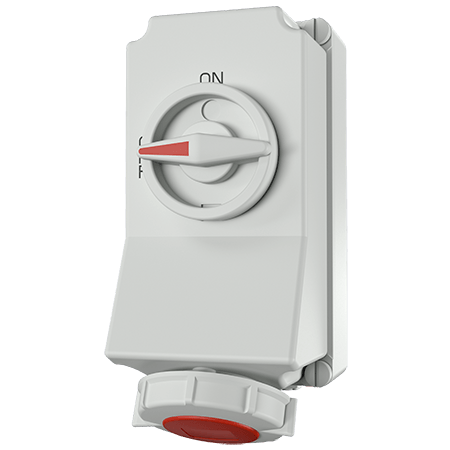

Wall mounted receptacle 5785

Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • highly heat resistant contact carrier
  • nickel plated contacts
  • 3 pole switch
  • receptacles can be padlocked
  • Part no.5785
  • EAN4015394029830
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 5785

Ampere 16 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic
Weight 1263 g
Certifications EAC
CQC

Directives

Wall mounted receptacle 5785

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

What do I use a 7-pin device for?

7-pin plugs and sockets can be used for any application that requires additional contacts.
