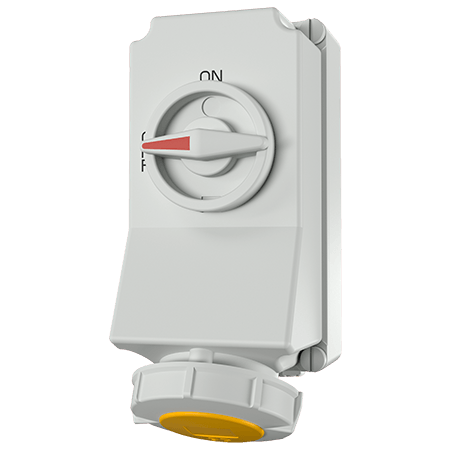

Wall mounted receptacle 5924A

Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.5924A
  • EAN4015394030386
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 5924A

Ampere 32 A
Poles 3 p
Voltage 110 V
Clock position 4 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Enclosure material Plastic
Weight 1165 g
Declaration of Conformity CN,CQC

Appropriate products

Wall mounted receptacle 5924A with IP 67

Plug AM-TOP®

Part no. 289

  • Protection type: IP 67
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more

Connector AM-TOP®

Part no. 551

  • Protection type: IP 67
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more

Panel mounted receptacle

Part no. 1501

  • Protection type: IP 67
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more

Wall mounted receptacle

Part no. 9350

  • Protection type: IP 67
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 110 V
  • Connection technology: Screw terminals
more
