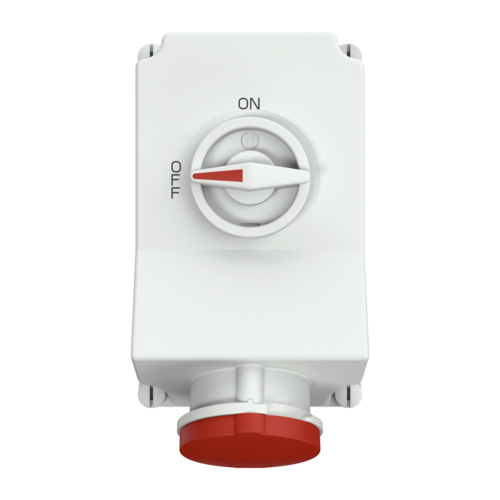

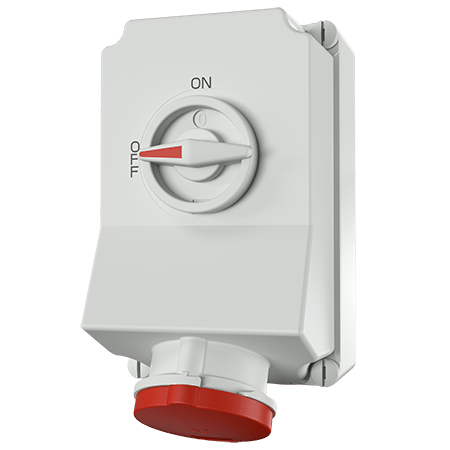

Wall mounted receptacle 5956A

Ampere 63 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT®
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.5956A
  • EAN4015394030607
  • Std. Pack. 3 Qty.

Technical specifications

Wall mounted receptacle 5956A

Ampere 63 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 44
Enclosure material Plastic
Weight 2326 g

Appropriate products

Wall mounted receptacle 5956A with IP 44

Panel mounted receptacle

Part no. 1151A

  • Protection type: IP 44
  • Ampere: 63 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Wall mounted receptacle

Part no. 1141A

  • Protection type: IP 44
  • Ampere: 63 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
