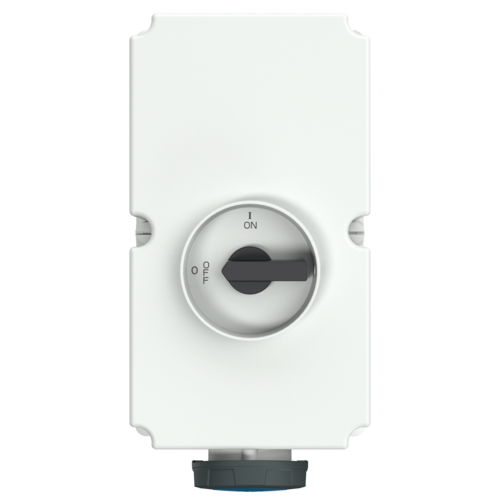

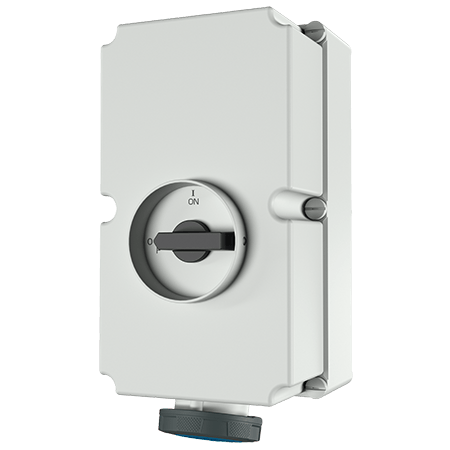

Wall mounted receptacle 7000

Ampere 125 A
Poles
Voltage
Clock position
  • screw terminals
  • X-CONTACT®
  • switched
  • mechanical DUO-interlock
  • upon request with provision for an additional padlock
  • Part no.7000
  • EAN4015394032366
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 7000

Ampere 125 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT®
Protection type IP 67
Enclosure material Plastic
Weight 7400 g
Declaration of Conformity CN,CQC
