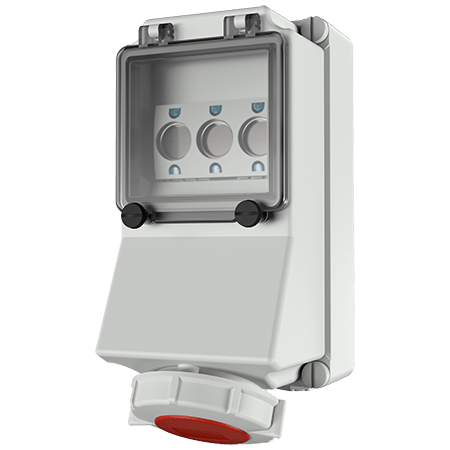

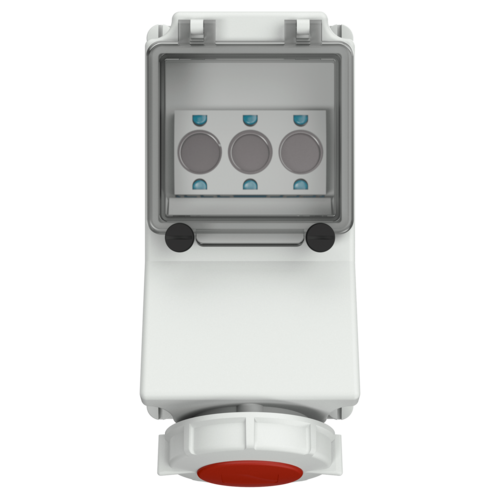

Wall mounted receptacle 7134

Clock position
  • screw terminals
  • fused with fuse socket D 01 or D 02
  • Part no.7134
  • EAN4015394100669
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 7134

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Enclosure material Plastic
Weight 1279 g
Declaration of Conformity CQC
