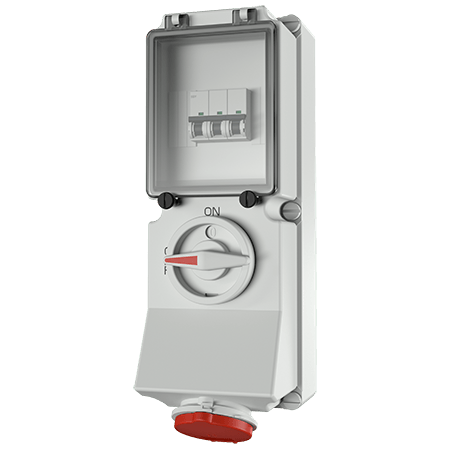

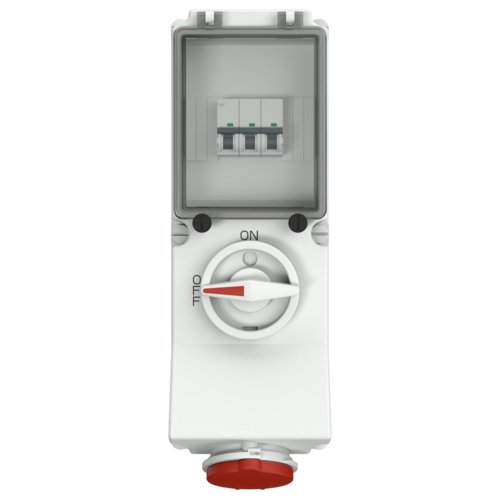

Wall mounted receptacle 7220

Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • circuit breaker, K-characteristics
  • receptacles can be padlocked
  • Part no.7220
  • EAN4015394131380
  • Std. Pack. 2 Qty.

Technical specifications

Wall mounted receptacle 7220

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Enclosure material Plastic
Weight 2435 g
