MENNEKES Wall mounted receptacle 7224
MENNEKES Wall mounted receptacle 7224 images3d

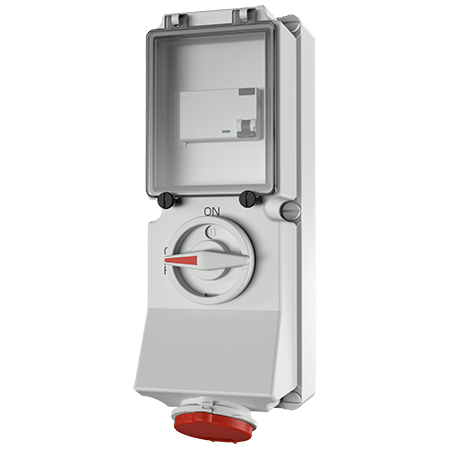

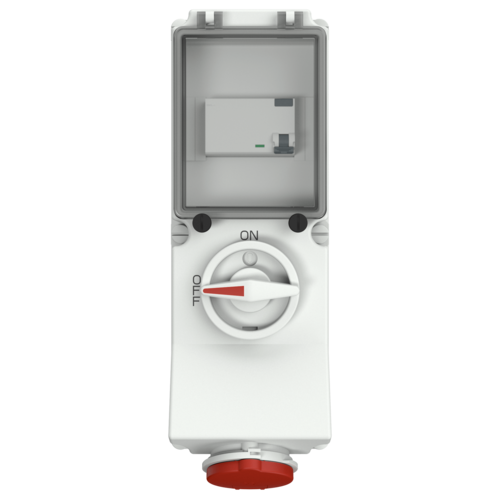

Wall mounted receptacle 7224

Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • RCD (0.03A)
  • other leakage current ratings on request
  • receptacles can be padlocked
  • Part no.7224
  • EAN4015394151029
  • Std. Pack. 2
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted receptacle 7224

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 2236 g
Certifications EAC
CQC

Directives

Wall mounted receptacle 7224

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.
