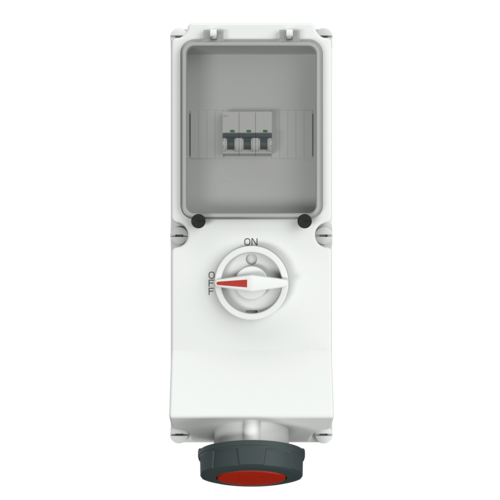

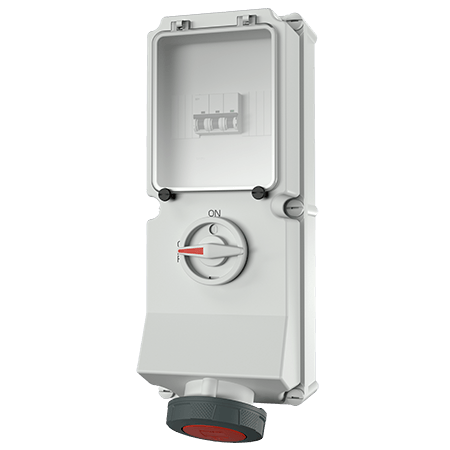

MENNEKES Wall mounted receptacle 7243
MENNEKES Wall mounted receptacle 7243 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 7243

Poles
Voltage
Clock position
  • mechanical DUO-interlock
  • circuit breaker, K-characteristics
  • receptacles can be padlocked
  • Part no.7243
  • EAN4015394123972
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 7243

Ampere 63 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Enclosure material Plastic
Weight 4298 g
Declaration of Conformity EAC
CQC

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
