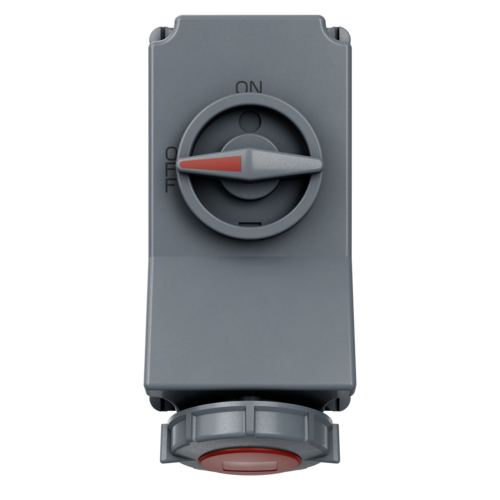

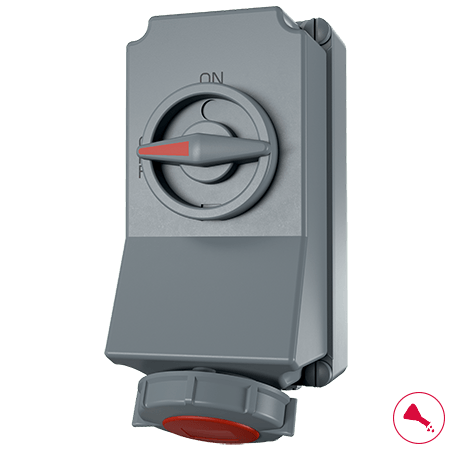

MENNEKES Wall mounted receptacle 7284
MENNEKES Wall mounted receptacle 7284 images3d

Wall mounted receptacle 7284

Poles
Voltage
Clock position
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.7284
  • EAN4015394101109
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 7284

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 1169 g
Declaration of Conformity VDE
EAC
CQC

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
