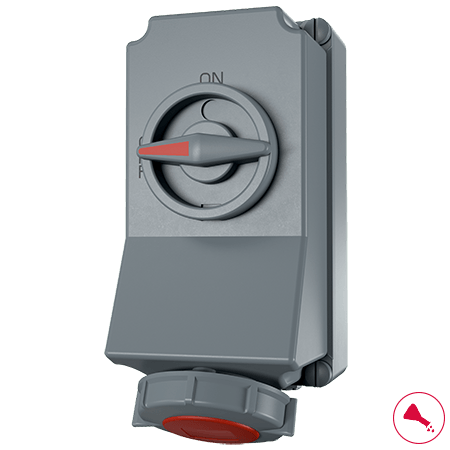

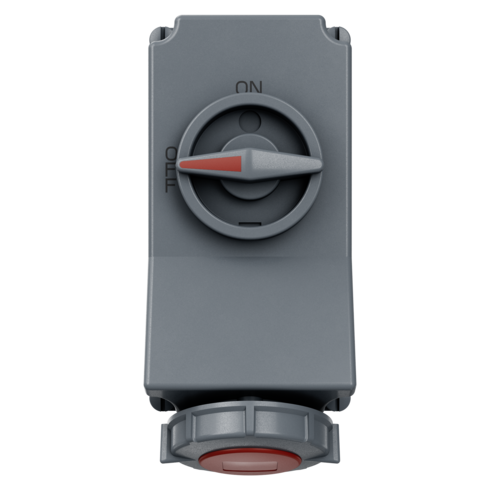

Wall mounted receptacle 7287

Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.7287
  • EAN4015394101147
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 7287

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP 67
Enclosure material Plastic, high resistance to chemicals
Weight 1258 g
Declaration of Conformity DE,VDE
