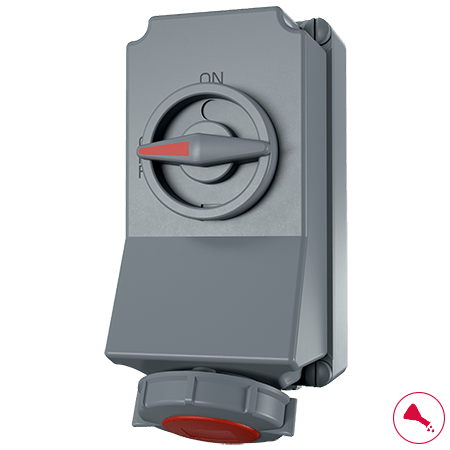

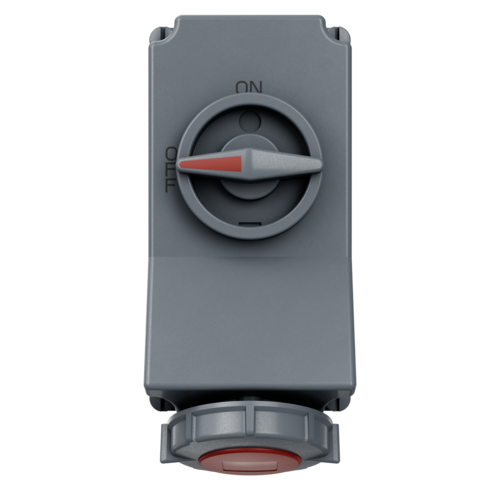

MENNEKES Wall mounted receptacle 7288
MENNEKES Wall mounted receptacle 7288 images3d

Wall mounted receptacle 7288

Ampere 32 A
Poles
Voltage
Clock position
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.7288
  • EAN4015394112914
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 7288

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 1292 g
Declaration of Conformity VDE
EAC

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.
