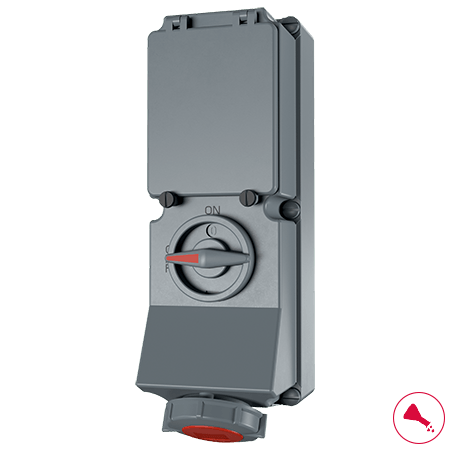

Wall mounted receptacle 7291

Poles
Voltage
Clock position
  • 63 A: X-CONTACT
  • highly resistant to chemicals
  • highly heat resistant contact carrier
  • nickel plated
  • contacts
  • switched
  • with mechanical DUO-interlock
  • DIN-rail
  • Part no.7291
  • EAN4015394148555
  • Std. Pack. 2 Qty.

Technical specifications

Wall mounted receptacle 7291

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Enclosure material Plastic
Weight 2000 g
