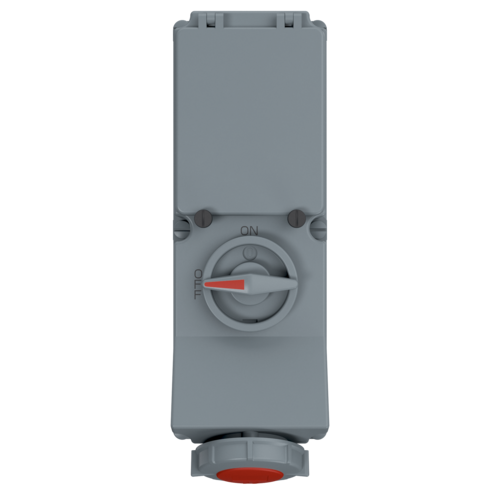

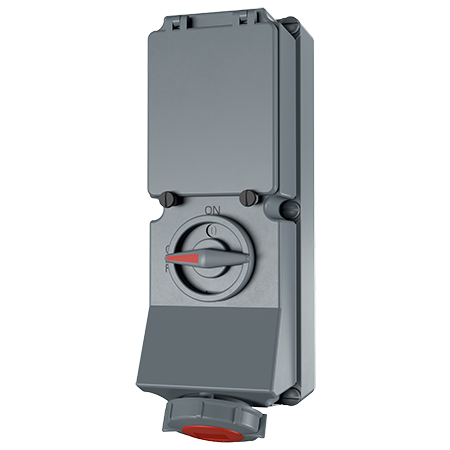

MENNEKES Wall mounted receptacle 7292
MENNEKES Wall mounted receptacle 7292 images3d

Wall mounted receptacle 7292

Poles
Voltage
Clock position
  • switched
  • mechanical DUO-interlock
  • DIN-rail
  • receptacles can be padlocked
  • Part no.7292
  • EAN4015394145776
  • Std. Pack. 2
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted receptacle 7292

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 2055 g
Certifications EAC
CQC

Directives

Wall mounted receptacle 7292

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.

To the questions and answers
