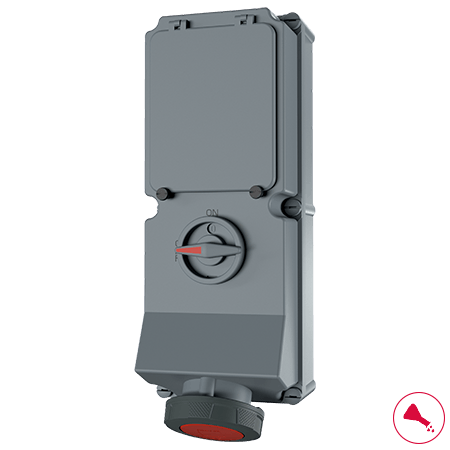

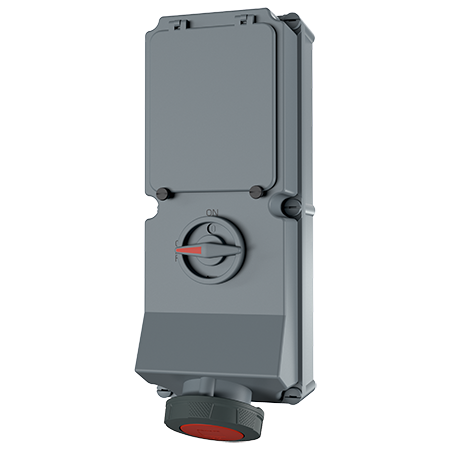

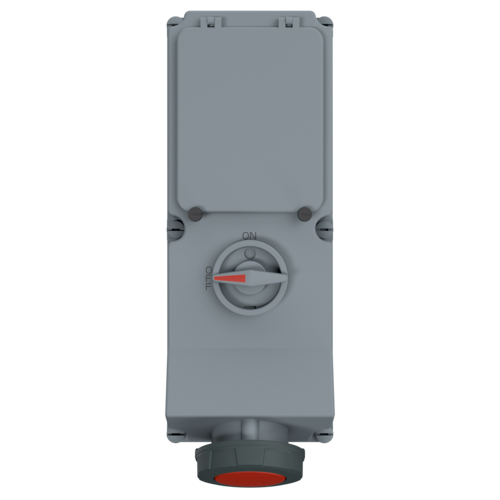

MENNEKES Wall mounted receptacle 7296
MENNEKES Wall mounted receptacle 7296 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Wall mounted receptacle 7296

Poles
Voltage
Clock position
  • switched
  • mechanical DUO-interlock
  • DIN-rail
  • receptacles can be padlocked
  • Part no.7296
  • EAN4015394135135
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted receptacle 7296

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 4338 g
Certifications EAC
CQC

Videos

Wall mounted receptacle 7296

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Wall mounted receptacle 7296

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.
