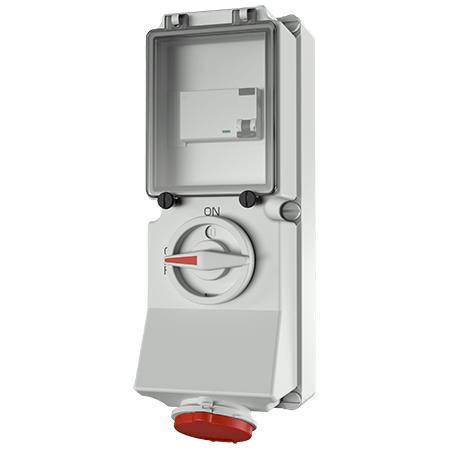

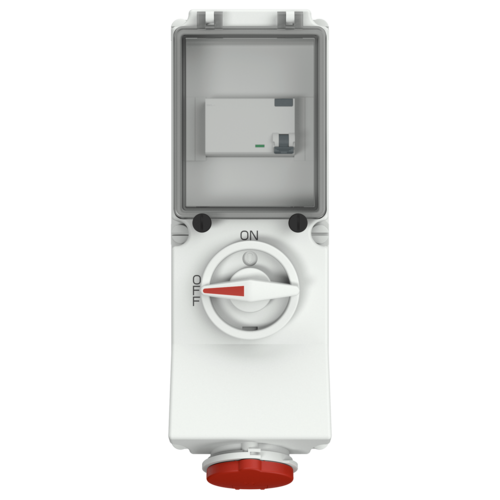

Wall mounted receptacle 7318

Poles
Voltage
Clock position
  • screw terminals
  • switched
  • mechanical DUO-interlock
  • RCD (0.03A)
  • other leakage current ratings on request
  • receptacles can be padlocked
  • Part no.7318
  • EAN4015394128595
  • Std. Pack. 2 Qty.

Technical specifications

Wall mounted receptacle 7318

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 44
Enclosure material Plastic
Weight 2160 g
Declaration of Conformity CN,CQC
