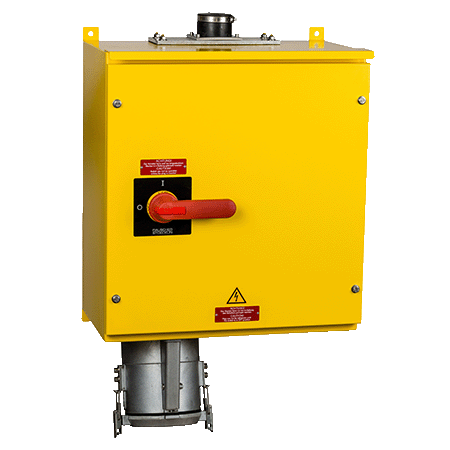

MENNEKES Wall mounted receptacle 75126

Wall mounted receptacle 75126

Poles
Voltage
Clock position
  • Screw terminals
  • switched
  • mechanical interlock
  • cable entry bushing for cables of 20 mm up to 70 mm at top and blind flange at bottom
  • enclosure made of sheet steel, painted in RAL 1021
  • external fixing
  • seawater resistant products are available on request
  • Part no.75126
  • EAN4015394055259
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 75126

Ampere 400 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP55
Weight 47000 g
Certifications EAC

Directives

Wall mounted receptacle 75126

Frequently asked questions about the product

Can you lock the main switch of DUO receptacles even in the activated state?

No, the deactivation function is a safety aspect.
