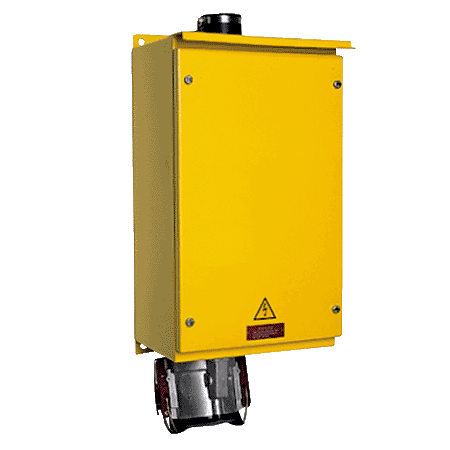

Wall mounted receptacle 75271

Ampere 200 A
Poles
Voltage
Clock position
  • screw terminals
  • switched
  • with contactor
  • electrically interlocked
  • cable entry bushing for cables of up to 65 mm at top and blind flange at bottom
  • enclosure made of sheet steel, painted in RAL 1021
  • seawater resistant products are available on request
  • Part no.75271
  • EAN4015394152170
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle 75271

Ampere 200 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 55
Weight 28820 g
Declaration of Conformity EAC
