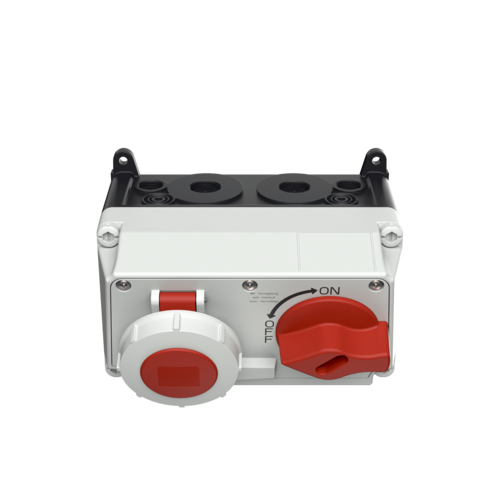

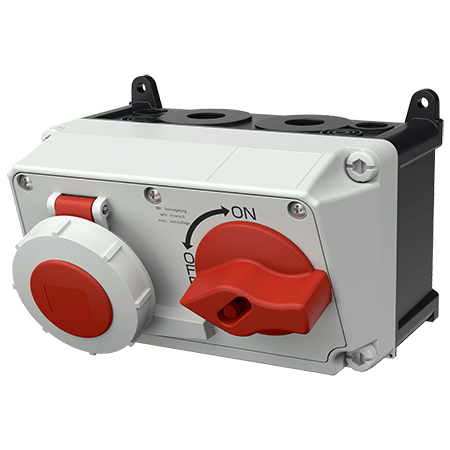

Wall mounted receptacle 7634

Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • switched
  • mechanical DUO-interlock
  • receptacles can be padlocked
  • Part no.7634
  • EAN4015394231646
  • Std. Pack. 1 Qty.

Technical specifications

Wall mounted receptacle 7634

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Enclosure material Plastic
Weight 1622 g
