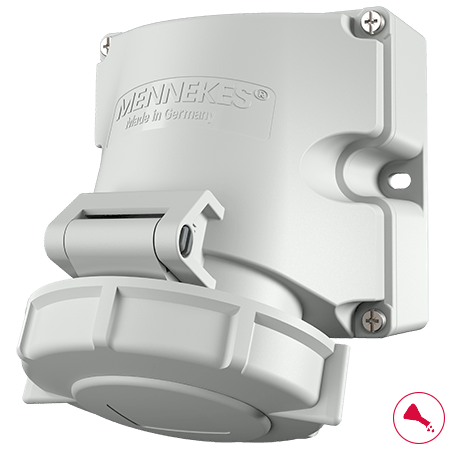

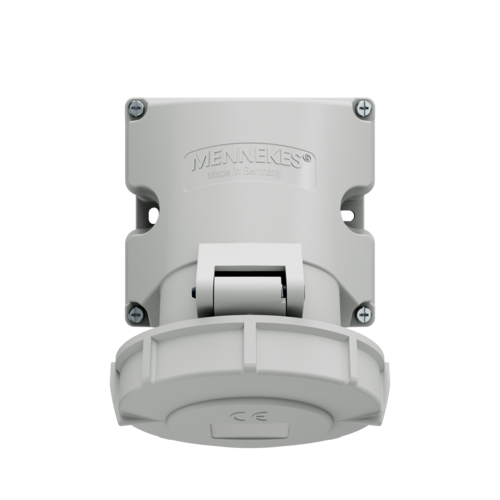

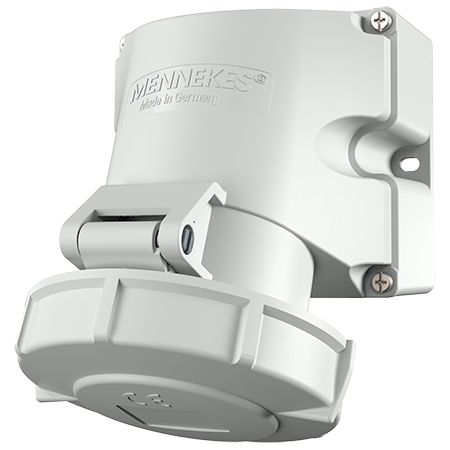

MENNEKES Wall mounted receptacle 9354
MENNEKES Wall mounted receptacle 9354 images3d

Wall mounted receptacle 9354

Poles
Voltage
Clock position
  • receptacles are designed for adding an auxiliary contact switch
  • enclosure can be turned 180°
  • Part no.9354
  • EAN4015394281160
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Resistant to chemicals

Resistant to chemicals

Increased chemical resistance

Technical specifications

Wall mounted receptacle 9354

Ampere 32 A
Poles 3 p
Voltage Isolating transformer
Clock position 12 h
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 510 g
Certifications EAC

Directives

Wall mounted receptacle 9354
