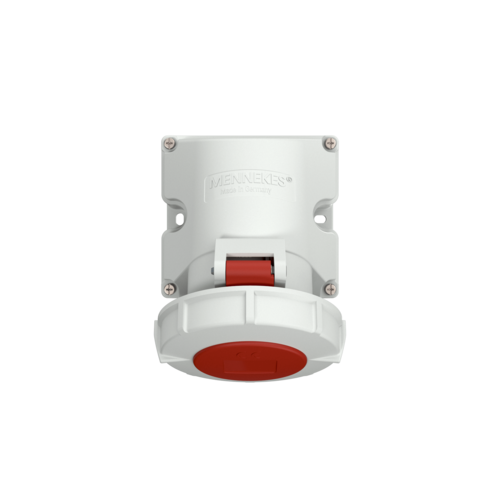

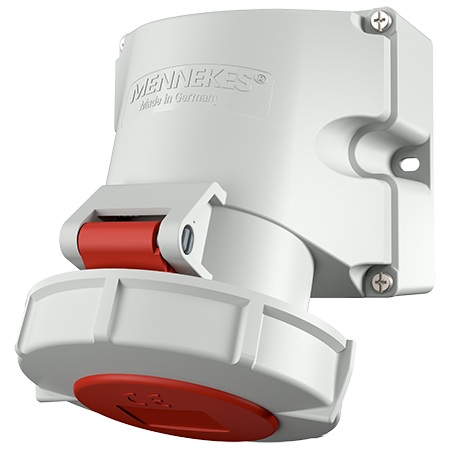

Wall mounted receptacle 9372

Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9372
  • EAN4015394280644
  • Std. Pack. 5 Qty.

Technical specifications

Wall mounted receptacle 9372

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP 67
Weight 529 g
Declaration of Conformity DE,VDE
CN,CQC

Appropriate products

Wall mounted receptacle 9372 with IP 67

Connector AM-TOP®

Part no. 556

  • Protection type: IP 67
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Plug AM-TOP®

Part no. 294

  • Protection type: IP 67
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Wall mounted receptacle

Part no. 5605A

  • Protection type: IP 67
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Panel mounted receptacle

Part no. 1506

  • Protection type: IP 67
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Wall mounted receptacle 9372

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

more
