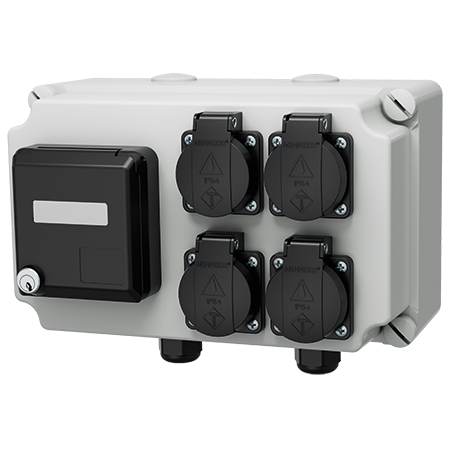

MENNEKES Compact network distributor 25748
MENNEKES Compact network distributor 25748 images3d

Compact network distributor 25748

SCHUKO® 16 A, 230 V
  • compact network distributor made of AMAPLAST
  • top part electric grey RAL 7035
  • including a height-adjustable mounting rail
  • the Compact network distributor replaces part no. 25715
  • Part no.25748
  • EAN4015394296232
  • Std. Pack. 2

Technical specifications

Compact network distributor 25748

SCHUKO® 16 A, 230 V 4
Connection/feeder cable
  • 2 M 25 at the top (closed)
  • 1 M 25 at the bottom (with cable gland)
  • 1 M 25 3 x 5-7 at the bottom (with cable gland)
  • (seal insert for 2 individual cables up to 8 mm Ø)
  • with terminal for 1 cable up to 5 x 4 mm²
Protection type IP44
Enclosure material Plastic
Weight 1800 g
Certifications EAC
Storage receptacle combination D

Datasheets & Downloads

Compact network distributor 25748

CAD data STPCompact network distributor 25748 ZIP, 2 MB
CAD data 3D DWGCompact network distributor 25748 ZIP, 8 MB

Directives

Compact network distributor 25748

REACh
RoHS
